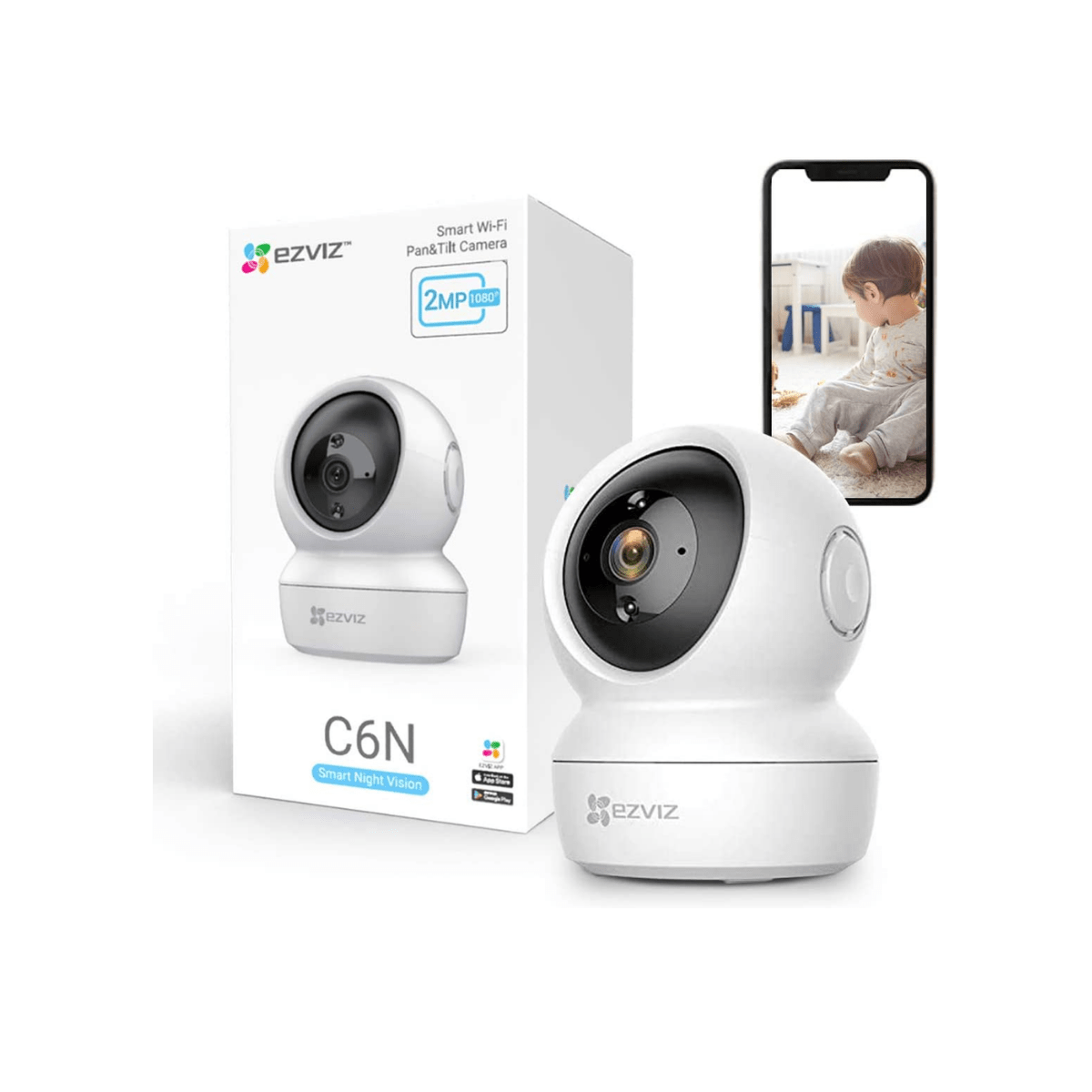

EZVIZ CS-C6N (4mm) (2.0MP) Wi-Fi PT IP Camera

Model Parameters

Model

CS-C6N-A0-1C2WFR

Camera

Image Sensor

1/4″ Progressive Scan CMOS

Shutter Speed

Self-adaptive shutter

Lens

4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical

Lens Mount

M12

Day & Night

IR-cut filter with auto-switching

DNR

3D DNR

WDR

Digital WDR

Compression

Video Compression

H.264

Video Bit Rate

Adaptive bit rate.


Max. Resolution

1920 × 1080

Frame Rate

Max. 15fps; Self-adaptive during network transmission

Network

Smart Alarm

Motion detection

Wi-Fi Pairing

AP Pairing

Protocol

EZVIZ Cloud Proprietary Protocol

Interface Protocol

EZVIZ Cloud Proprietary Protocol

Interface

Storage

MicroSD card slot (Max. 256 GB)

Power

Micro USB

Wired Network

RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

Standard

IEEE802.11 b/g/n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Supports 20MHz

Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate

11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps

General

Power Supply

DC 5V/1A

Power Consumption

5W max

IR Range

MAX. 10m (32.81 fts)

Dimensions

88 mm x 88.2 mm x 119 mm (3.46” x 3.47” x 4.69”)

Packaging Dimensions

103 mm x 103 mm x 168 mm (4.06” x 4.06” x 6.61”)

Bare Weight

218g (0.48lb)

Packaging Contents

Packaging Contents

C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide

Operating Environment

Temperature

-10° C to 45° C (14° F to 113° F)

Humidity

95% or less (non-condensing)

Certifications

Certifications

FCC / UL / CE / WEEE / REACH / RoHS
